LoRaWAN Fuzzer

A fuzzer that sends uplinks with mutated payloads from a simulated LoRaWAN device to a ChirpStack network server and records whether a valid downlink comes back.

Code on GitHub · Solo project, November 2023 · Built on an open-source LoRaWAN device simulator; the fuzzer, the ChirpStack setup and the guide are mine

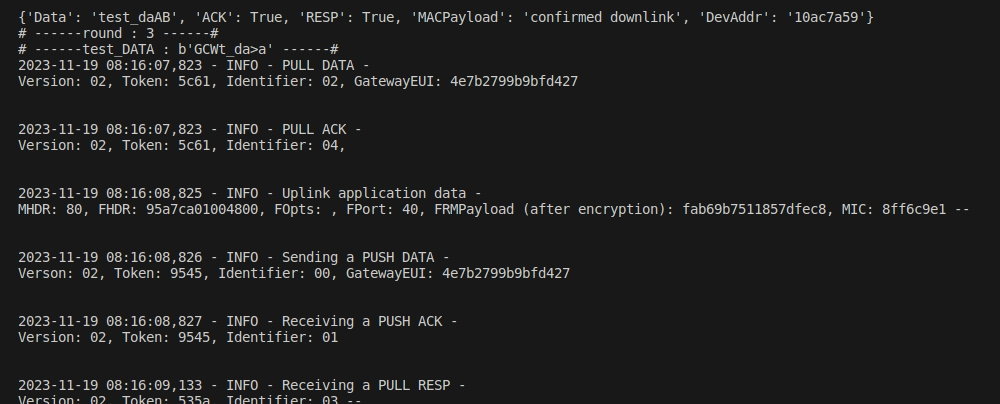

One fuzzing round: the simulated gateway polls the server (PULL DATA), sends the mutated uplink (PUSH DATA), and receives the server's downlink (PULL RESP).

The problem

LoRaWAN devices reach a network server through gateways, so testing how a server handles unusual traffic needs devices and a gateway. A software device and gateway can send chosen messages on demand, without radio hardware.

What I built

  • A test setup with ChirpStack as the network server, and a simulated gateway and over-the-air-activated device registered in it. The simulator (Python, adapted from the open-source one) handles the LoRaWAN 1.1 join, payload encryption and message integrity codes, and talks to ChirpStack over the Semtech UDP packet-forwarder protocol.
  • A fuzz command in Python: it takes a seed payload, makes 20 mutated versions (each character is replaced by a random printable one with probability 0.5), and sends each one as a confirmed uplink through the simulated gateway. For every round it records whether a downlink came back and passed its integrity check, and writes the results to a CSV file.
  • A step-by-step guide to the setup: configuration, gateway poll, join, uplink and fuzzing.

Results

In the recorded run, ChirpStack sent back a downlink for all 20 uplinks, and each one passed the integrity check. That is the expected outcome: the payload is mutated before encryption, so every frame reaches ChirpStack well formed. The run shows the setup works end to end; no anomaly was found.

Limits

Only the application payload is mutated, before encryption. Header fields and MAC commands are not mutated; that would be the next step.
